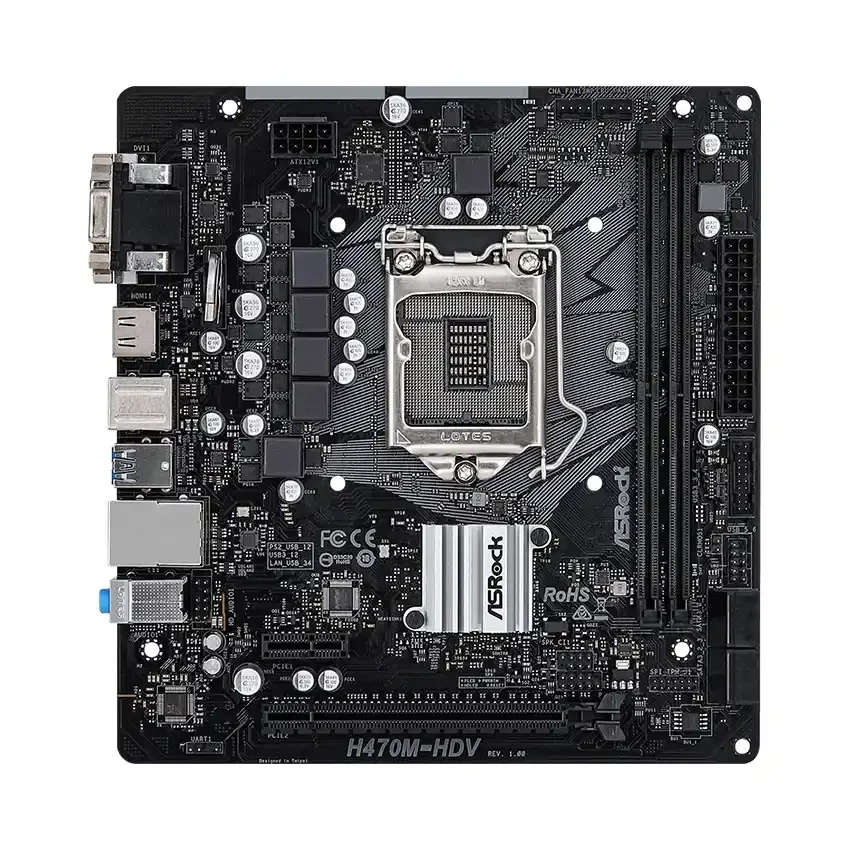

Mainboard ASROCK H470M-HDV (Intel H470, Socket 1200, m-ATX, 2 khe Ram DDR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

ASROCK

Model

H470M-HDV

CPU hỗ trợ

Intel

Chipset

H470

RAM hỗ trợ

2 x DDR4 memory slots, support up to 64GB, DDR4 2933/2800/2666 / 2400 / 2133 non-ECC

Khe cắm mở rộng

- 1 x PCI Express 3.0 x16 Slot*
- 1 x PCI Express 3.0 x1 Slot

Ổ cứng hỗ trợ

- 4 x SATA3 6.0 Gb/s

Cổng kết nối (Internal)

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Công kết nối (Phía sau)

- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Kích cỡ

Micro ATX Form Factor: 19.7 cm x 18.8 cm
